Aftermarket replacements for Roten Type 3 / Uniten 3 | AESSEAL T04 / T04D | Vulcan 13 / 13DIN
Luwint MR3 and MU3 are O-ring mounted, conical spring mechanical seals for pump maintenance and replacement applications. Their rotary assemblies combine a sealing face, elastomer O-rings and a single tapered spring.
MR3 corresponds to the Roten Type 3 family, while MU3 corresponds to the Uniten 3 family with different stationary-seat dimensions. Selecting the correct version requires a check of the seat housing, rotary fitting dimensions and shaft rotation.
Why Choose the MR3 / MU3 Range
-
Simple component construction: a single conical spring and O-ring mounted sealing face provide a straightforward arrangement for pump servicing.
-
Two seat configurations: MR3 and MU3 cover different housing dimensions within related seal families.
-
Spring-driven rotary assembly: the conical spring grips the shaft to transmit rotation to the seal head.
-
Face and elastomer choices: materials can be selected for the liquid and operating conditions.
-
Metric sizing: the catalogue includes selected shaft sizes from 10 to 40 mm.
Choosing the Correct Model
| Feature | MR3 | MU3 |
|---|---|---|
| Corresponding Roten family | Roten 3 | Uniten 3 |
| Corresponding Vulcan family | Type 13 | Type 13DIN |
| Stationary-seat arrangement | Roten Type 3-style dimensions | Uniten 3 / DIN-style seat dimensions |
| Main dimensions to check | Shaft, rotary assembly and stationary seat | Shaft, rotary assembly and stationary seat |
The stationary seats are not interchangeable solely because the shaft diameter matches.

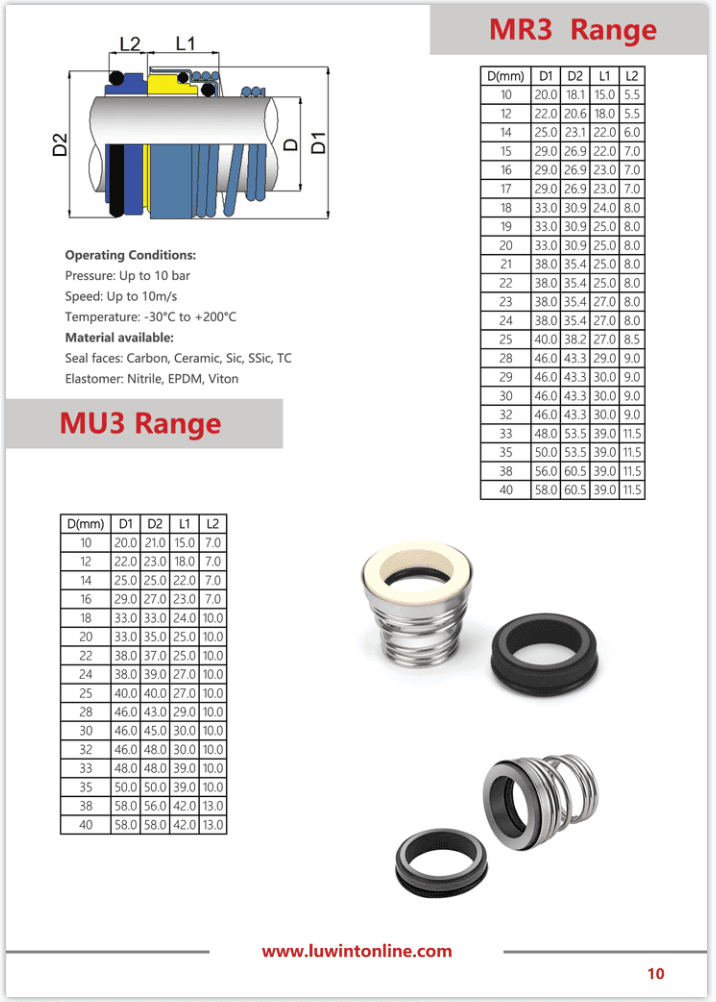

For example, at a 20 mm shaft diameter, the Luwint catalogue lists a stationary-seat dimension D2 of 30.9 mm and length L2 of 8 mm for MR3. For MU3, D2 is 35 mm and L2 is 10 mm. Both list L1 as 25 mm at this size.
Other sizes may also differ in rotary dimensions. Use the drawing for the exact model and shaft size, and distinguish the rotary fitting dimension L1 from the stationary-seat length L2 and complete installed assembly length.
These conical spring designs depend on shaft rotation. Confirm the required spring hand and rotation direction, including the viewing direction used, before ordering.
Typical Operating Conditions
| Parameter | Luwint catalogue range or limit |
|---|---|
| Shaft sizes listed | 10–40 mm, in selected metric sizes |
| Pressure | Up to 10 bar |
| Sliding speed | Up to 10 m/s |
| Temperature | −30°C to +200°C |
Actual limits depend on seal size, face materials, elastomer, liquid and duty. Maximum pressure, speed and temperature should not be assumed to apply simultaneously. Confirm suitability for the operating conditions.
Common Cross-References
| Luwint | Roten | AESSEAL | Vulcan |
|---|---|---|---|
| MR3 | Roten 3 | T04 | 13 |
| MU3 | Uniten 3 | T04D | 13DIN |
These references identify corresponding seal families. Confirm the stationary seat, rotary fitting dimensions, spring hand and material combination before selecting a replacement.
The MU3 reference to Uniten 3 should not be extended to Uniten 3K or other versions with different installation lengths.
Where It Is Used in Australia
With suitable materials and a verified dimensional match, MR3 and MU3 can be selected for:
-
Water circulation and transfer pumps
-
Building-services and utility pumping
-
Agricultural and irrigation equipment
-
General industrial liquid transfer
-
Light process duties involving compatible liquids
Assess fluid chemistry, temperature, solids content and operating pressure when choosing the face pairing and elastomer.
Materials Available
The Luwint catalogue lists:
-
Seal faces and stationary seats: Carbon, Ceramic, Silicon Carbide (SiC), Sintered Silicon Carbide (SSiC) and Tungsten Carbide (TC).
-
Elastomers: Nitrile (NBR), EPDM and Viton (FKM).
Contact Luwint to confirm the available material combination for your model and shaft size. Material selection should account for the liquid, temperature and expected wear conditions.
Sydney Supply. Help with Selection.
Contact Luwint for current stock availability, pricing and dispatch timing.
For help matching a replacement, send the pump make and model, shaft diameter, clear photos of the old seal and spring, rotary fitting dimensions, and stationary-seat dimensions.
Include the shaft rotation direction, the direction from which it is viewed, the liquid, operating temperature and pressure.
Ask us for the full PDF catalogue and the MR3 / MU3 dimensional drawing.
