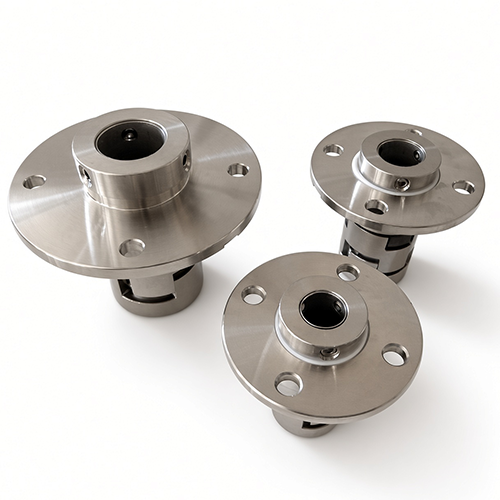

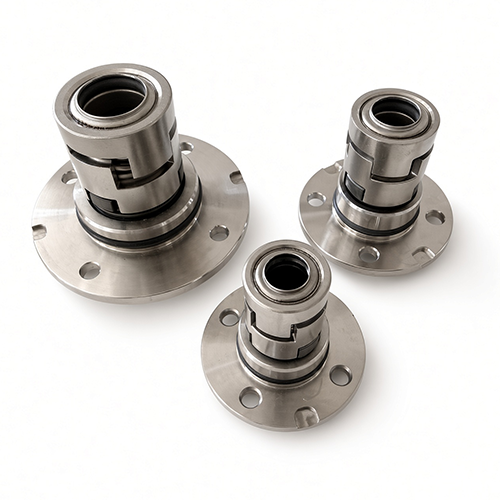

Javelin Pump Seals-12mm 16mm 22mm

Replaces the cartridge seal in Javelin JV vertical multistage pumps:

• JV 1, 3, 5 = 12mm
• JV 10, 15, 20 = 16mm
• JV 32, 45, 64, 90 = 22mm

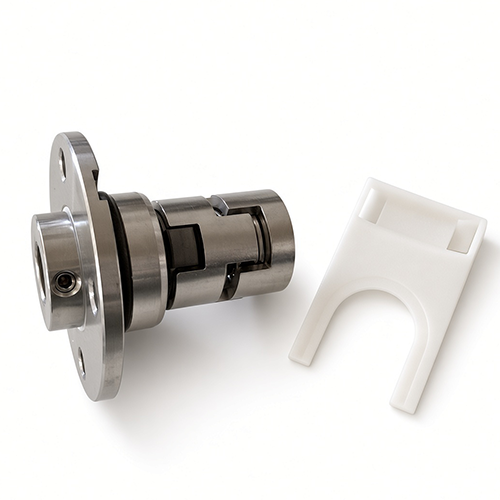

Cartridge Seal Unit
Bolt-fitted · Balanced · O-ring mounted · Grub-screw driven

Replacement cartridge seal for vertical multistage pumps. Installs through a 4-hole seal plate. Balanced, O-ring mounted design for higher-pressure service.

Operating conditions
Temperature: -20°C to +150°C
Pressure: up to 17 bar / 250 psi

Materials
SIC / SIC / EP

Pump compatibility

Replaces the Type “S” cartridge seal in SBI or PVMI vertical multistage pumps:

• SBI, PVMI 1, 3, 5 = 12mm
• SBI, PVMI 10, 15, 20 = 16mm
• SBI, PVMI 32, 45, 64, 90 = 22mm
• SBI, PVMI 120, 150
