Single cartridge sealing for industrial process pumps
The Luwint MX2 is a single cartridge mechanical seal that combines the sleeve, gland and sealing components in one assembly. It is an option for pump maintenance and replacement work where a single sealing interface is suitable for the liquid and operating conditions.
Cartridge construction reduces the number of individual components that must be handled and positioned during installation. The MX2 also has a shorter axial arrangement than the corresponding MX2D double cartridge and MX2Q cooling version, making installation space an important part of selection.
Why Choose MX2?
-
Integrated cartridge construction: brings the sealing components, sleeve and gland together for installation.
-
Single sealing interface: suits applications where the process liquid and any specified flush can maintain suitable conditions at the seal faces.
-
Compact arrangement within the MX2 family: requires less axial space than the double and cooling versions shown in the catalogue.
-
Material options: allows face, elastomer and metal selections to be matched to the application.
Selecting the Correct Cartridge
A matching shaft diameter is only the starting point. Check the seal-chamber bore and depth, gland mounting dimensions, available shaft length and clearance around the drive collar.

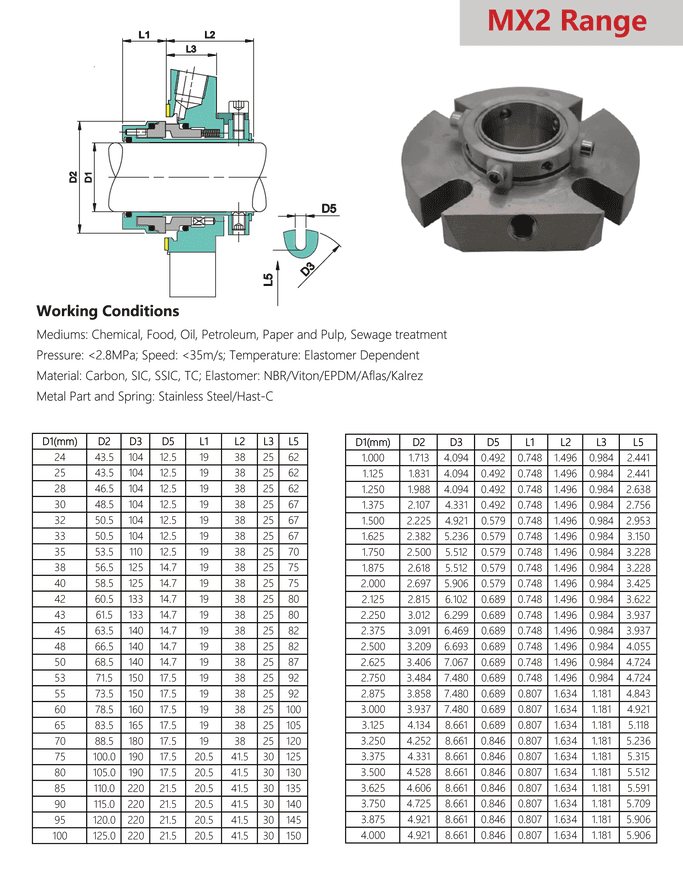

For the listed metric sizes from 24 to 70 mm, catalogue dimensions L1 and L2 are 19 mm and 38 mm. For 75 to 100 mm sizes, they are 20.5 mm and 41.5 mm. Refer to the dimensional drawing for the meaning of each measurement and the complete mounting envelope.
Follow the supplied installation instructions for positioning, fastening and releasing any setting devices before operation.
Typical Operating Conditions
| Parameter | Catalogue specification |
|---|---|
| Listed metric shaft sizes | 24–100 mm, in selected sizes |
| Pressure | Below 2.8 MPa / 28 bar |
| Sliding speed | Below 35 m/s |
| Temperature | Dependent on elastomer selection |
These catalogue limits do not necessarily apply simultaneously. The working specification depends on the complete material combination, liquid, lubrication and operating duty.
Materials Available
| Component | Catalogue options |
|---|---|
| Seal faces | Carbon, silicon carbide (SiC), sintered silicon carbide (SSiC), tungsten carbide (TC) |
| Elastomers | NBR, Viton, EPDM, Aflas, Kalrez |
| Metal parts and springs | Stainless steel or Hast-C, as specified |
Confirm the required material grades and face pairing when ordering.
Applications in Australia
With suitable materials and seal-chamber conditions, MX2 can be selected for chemical processing, oil and petroleum transfer, pulp and paper processing, wastewater treatment and food-processing pump duties.
Food-contact suitability depends on the specified materials and supporting documentation.
Sydney Supply. Help with Selection.
Send Luwint the pump make and model, shaft diameter, seal-chamber dimensions, existing seal photographs, liquid, temperature, seal-chamber pressure and operating speed.
Contact us for the MX2 catalogue, dimensional drawing, pricing, current availability and dispatch timing.
