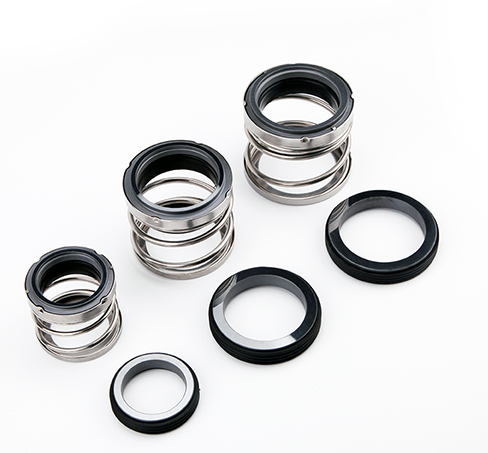

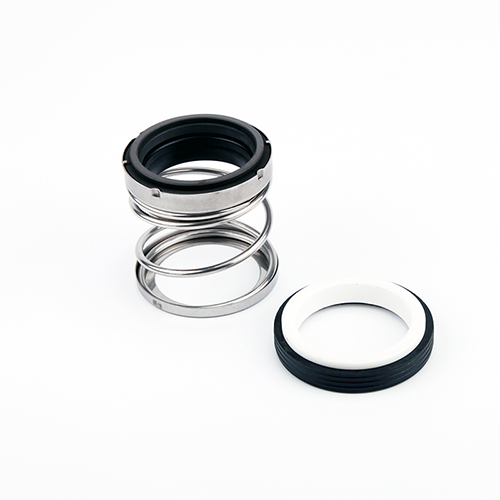

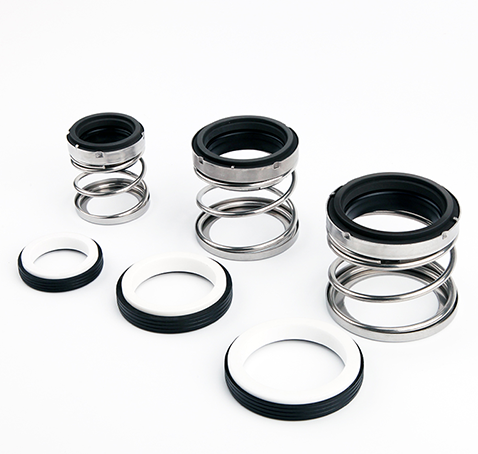

Type 21 Rubber Bellow Mechanical Seal
| Shaft Size (mm) |
Rotary Outer Diameter |
Stationary Outer Diameter |
Rotary Working Length |
Stationary Working Length |
Total Working Length |
| 32 | 50.5 | 48.0 | 31.5 | 11.0 | 42.5 |
| 33 | 51.5 | 48.0 | 31.5 | 11.0 | 42.5 |
| 43 | 61.5 | 61.0 | 32.3 | 12.7 | 45.0 |
| 53 | 74.0 | 73.0 | 33.3 | 14.3 | 47.6 |
-
Industry Standard Design: Reliable general-purpose elastomer bellows shaft seal designed for centrifugal pumps, compressors, and rotary equipment.
-
Self-Aligning & Flexible: The flexible rubber bellows automatically compensates for shaft end-play, misalignment, and normal axial movement.
-
Shaft Protection: Positive non-fretting drive mechanism prevents shaft wear and galling.
-
Non-Clogging Operation: Single coil spring design provides even face loading and resists clogging in dirty fluids.
